Pall rings are made using advanced industrial designs thus making them useful for a variety of applications. Like many people, however, you may be wondering what are pall rings used for? Well, all your answers are here.
In this article, we intend to answer all the questions you may be having regarding pall rings. They include:
- What are pall rings?
- What are pall ring used for?
- What are the common features of a typical pall ring?
- Pall ring application
- Pall ring packing
- Metal pall ring
- Common features of metal pall ring
- Metal ring specifications
- The application of random packing in process plants

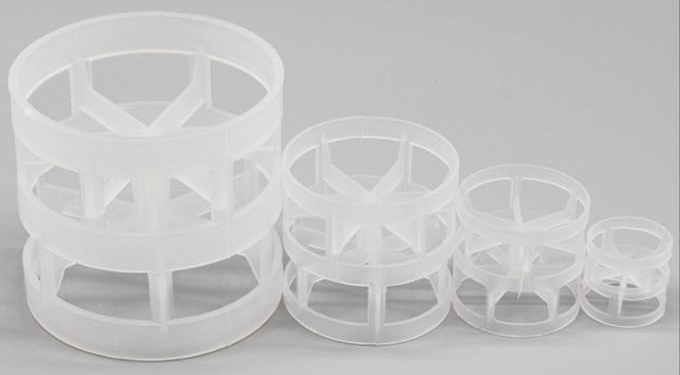

What Are Pall Rings?
Pall rings are designed in such a way that they enhance packaging aspects. A typical pall ring resembles thin bars with an open bucket structure which create a better alternative to a solid wall tube. They may be molded of ceramics, plastics, or press-formed from sheets of metal. Buy high-quality pall rings at gustawater.com, we are a leading manufacturer of plastic water treatment products.
What Are Pall Ring Used For?
Pall rings are commonly used in packing. Metal pall rings have interior and exterior surfaces that allow lower pressure drop and greater capacity compared to cylindrical pall rings. There is also the open pall rings design that can further resist wall-channeling tendencies.
However, metal pall rings are the best since they are designed to allow liquids and gases to be distributed effectively. They are also resistant to fouling, nesting, and plugging.
In general, a pall ring is used in random packing which is just one of three major applications in heat transfer. The other two include trays and structured packing. Just like these two, random packing is done with the primary purpose of creating a surface area for the liquids and vapor to come in contact so that a chemical separation can be produced through thermodynamics and Mother Nature.
What are the common features of pall rings?
- Pall rings have a high resistance to fouling and high temperature, are easily wettable when in use, and are versatile for a wide variety of applications
- They have a high mass transfer efficiency of liquids and gases. They can also accommodate a high loading capacity especially in the case of a metal pall ring.
- Metal pall rings are mechanically robust and can handle high-temperature applications since they have a much less probability of breakage, they are highly suitable for the deeper beds.
Pall Ring Application
There are a wide variety of applications in where pall rings can be used. In particular, they can be used in all types of separation. The most common applications of pall rings include; aeration, absorption, desorption, separation of isooctane/methylbenzene, separation of ethylbenzene, heat recovery, decarburization, extraction, distillation, desulfuration, and degassing.
Engineers prefer using a pall ring in applications that demand a low-pressure drop. This makes them highly useful in fractional distillation. As such, you are most likely to find them in places with a critical need for a low-pressure drop under vacuum.
They are further used in quench towers, in most steam stripping applications, and direct contact cooling applications.
Pall Ring in Packing
One of the greatest beneficiaries of the development of the pall ring is random packing. The pall ring capacity and efficiency can be increased by 50-80% by punching tabs on its walls. They usually have the same measure of height and diameter and most come in handy in packing mostly in distillation and absorption services.
Metal Pall Ring
Pall rings are either plastic or metallic. A metal pall ring can be used in environments that are extremely harsh and still not lose their efficiency. They are made of either galvanized steel, carbon steel, or stainless steel. The one that is more popular and most commonly used is the stainless-steel pall ring mainly because it has the best properties of chemical stability performance as well as efficient performance.
Common Features of Metal Pall Ring
Metal pall rings have features that increase efficiency. They include;
- High throughput and loading capacity. This allows them to withstand the heavyweights that are common in engineering applications
- They are temperature resistance which means that they operate optimally regardless of whether the temperatures are too hot or too cold.
- They come in various sizes thus there is always one suitable for your needs. Moreover, since we create them we can as well customize one to fit your exact requirements
- They have a much low probability of breakage given their highly advanced mechanical capacity
- They have very high efficiency in the separation of liquids and gases.
- They are resistant to common chemical substances such as acids, alkali, and salt. This significantly reduces their chances of wear and tear.
- They are also resistant to rust and corrosion. As such, they can give you a long service stretching to decades.
Metal Ring Specifications
- Material: – they made of either; stainless steel, carbon steel, aluminum, titanium or any other preferable duplex and high allow specialty metal.
- Diameter: – pall rings come in different shapes and sizes which also influences their diameter. In general, the diameter of a typical pall ring can be as small as 16 mm and as large as 90 mm.
- Thickness: this also depends on the size and design. The smallest pall ring has a thickness of 0.3 mm while the largest has 1.0 mm.
The Application of Random Packing in Process Plants
We already know that a pall ring is used in fractional distillation, but you may still be wondering exactly what are pall ring used for? How exactly does the random packing use of a pall ring apply in a process plant?
Well, in most processes of chemical separation also known as mass transfer, the heat and pressure drive vapor in the column upwards while the force of gravity forces the liquids to fall downwards. As a rule of thumb, a larger random packing translates to higher capacity and a more efficient cost.
It is usually upon the design engineer to the packing that is most appropriate and one that creates the most economical balance between efficiency and capacity.
Well, there goes an explanation of pall rings, what are pall ring used for. If you have any inquiries, do not hesitate to reach out to us by commenting below!
